CLA30MT1200NPB | Littelfuse

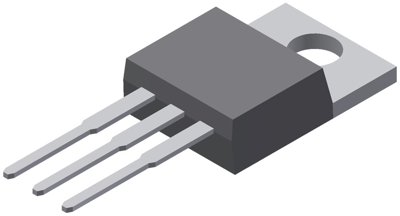

Thyristor, 1200 V (RRM), 33 A, TO-220AB, Littelfuse CLA30MT1200NPB
Order No.: 74P0031
EAN: 4099891768966
MPN:
CLA30MT1200NPB
Unit Price (€ / pc.)
3.1773 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
High efficiency thyristor, CLA30MT1200NPB, Littelfuse
High efficiency thyristor, triac for line frequency. This product features a planar passivated chip and long-term stability of blocking currents and voltages.
Applications
- Softstart AC motor control
- DC Motor control
- Power converter
- Lighting and temperature control
Technical specifications
| Anzahl der Pins | 3 | |
| Ausführung | Thyristor | |
| Gate-Trigger-Spannung | 1.3 V | |
| Gate-Trigger-Strom | 40 mA | |
| Gehäuse | TO-220AB | |
| Haltestrom | 50 mA | |
| max. Strom | 33 A | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -40 °C | |
| Montage | THT | |
| Spannung V RRM (Spitzensperrspannung) | 1200 V | |
| Spannungsanstiegsraten dV/dt | 500 V/s |
Download
Logistics
| Ursprungsland | KR |
| Zolltarifnummer | 85413000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
