CLA40E1200HR | Littelfuse

Thyristor, 1200 V (RRM), 40 A, ISO247, Littelfuse CLA40E1200HR

Order No.: 74P0034
EAN: 4099891768997
MPN:
CLA40E1200HR
CLA40E1200HR Littelfuse Thyristoren,Diacs,Triacs,Quadracs

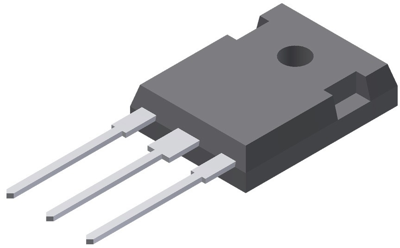

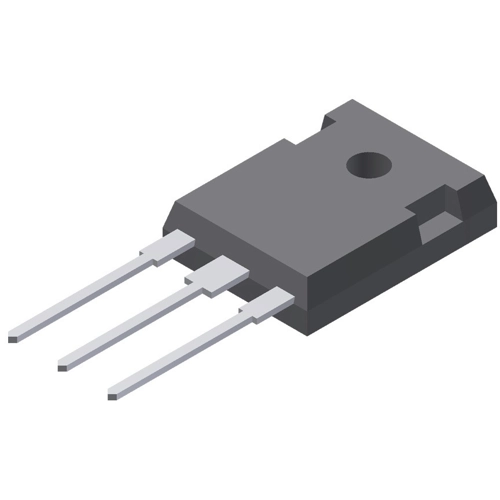

Image may differ
Unit Price (€ / pc.)
8.1396 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
244.19 € *
*incl. VAT plus shipping costs
**Subject to prior sale
30 pcs.
8.1396 €

Single thyristor, CLA40E1200HR, Littelfuse

Thyristor for line frequency with planar passivated chip and long-term stability.

Applications

  • Softstart AC motor control
  • DC Motor control
  • Power converter
  • Lighting and temperature control
Technical specifications
Anzahl der Pins 3
Ausführung Thyristor
Gate-Trigger-Spannung 1.5 V
Gate-Trigger-Strom 50 mA
Gehäuse ISO247
Haltestrom 100 mA
max. Strom 40 A
max. Temperatur 125 °C
min. Temperatur -55 °C
Montage THT
Spannung V RRM (Spitzensperrspannung) 1200 V
Spannungsanstiegsraten dV/dt 1000 V/s
Logistics
Ursprungsland PH
Zolltarifnummer 85413000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
