CLA50E1200TC-TUB | Littelfuse

Thyristor, 1200 V (RRM), TO-268AA, Littelfuse CLA50E1200TC-TUB

Order No.: 74P0044
EAN: 4099891769093
MPN:
CLA50E1200TC-TUB
CLA50E1200TC-TUB Littelfuse Thyristoren,Diacs,Triacs,Quadracs

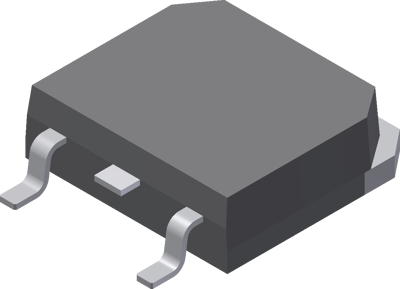

Image may differ
Unit Price (€ / pc.)
6.6759 € *
Available: 0 pcs.
Leadtime: 27 Weeks **
Total Price:
200.28 € *
*incl. VAT plus shipping costs
**Subject to prior sale
30 pcs.
6.6759 €

Thyristor, CLA50E1200TC-TUB, Littelfuse

Single thyristor, a planar passivated chip for line frequency with long-term stability.

Features

  • Industry standard outline
  • RoHS compliant
  • Epoxy meets UL 94V-0

Applications

  • Line rectifying 50/60 Hz
  • Softstart AC motor control
  • DC motor control
  • Power converter
  • AC power control
  • Lighting and temperature control
Technical specifications
Anzahl der Pins 3
Ausführung Thyristor
Gate-Trigger-Spannung 1.5 V
Gate-Trigger-Strom 50 mA
Gehäuse TO-268AA
Haltestrom 100 mA
max. Temperatur 125 °C
min. Temperatur -40 °C
Montage SMD
Spannung V RRM (Spitzensperrspannung) 1200 V
Spannungsanstiegsraten dV/dt 1000 V/s
Logistics
Ursprungsland PH
Zolltarifnummer 85413000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
