CMA20E1600PZ-TRL | Littelfuse

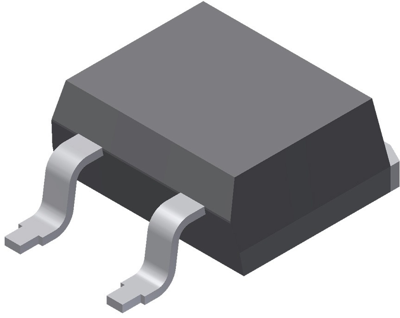

Thyristor, 1600 V (RRM), TO-263, Littelfuse CMA20E1600PZ-TRL
Order No.: 74P0056
EAN: 4099891769215
MPN:
CMA20E1600PZ-TRL
Unit Price (€ / pc.)
2.0587 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Thyristor, CMA20E1600PZ-TRL, Littelfuse
Single thyristor, a planar passivated chip for line frequency with long-term stability.
Features
- Industry standard outline
- RoHS compliant
- Epoxy meets UL 94 V-0
- High creepage distance between terminals
Applications
- Line rectifying 50/60 Hz
- Softstart AC motor control
- DC motor control
- Power converter
- AC power control
- Lighting and temperature control
Technical specifications
| Number of pins | 3 | |
| Version | thyristor | |
| Gate trigger voltage | 1.3 V | |
| Gate trigger current | 28 mA | |
| Enclosure | TO-263 | |
| max. holding current | 60 mA | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Voltage V RRM (peak reverse voltage) | 1600 V | |
| Voltage slew rates dV/dt | 500 V/s |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85413000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
