CMA60MT1600NHR | Littelfuse

Thyristor, 1600 V (RRM), ISO-247, Littelfuse CMA60MT1600NHR

Order No.: 74P0068
EAN: 4099891769338
MPN:
CMA60MT1600NHR
CMA60MT1600NHR Littelfuse Thyristoren,Diacs,Triacs,Quadracs

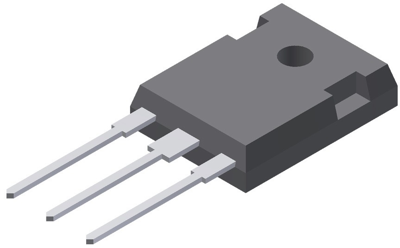

Image may differ
Unit Price (€ / pc.)
8.6513 € *
Available: 0 pcs.
Leadtime: 67 Weeks **
Total Price:
259.54 € *
*incl. VAT plus shipping costs
**Subject to prior sale
30 pcs.
8.6513 €

Triac, CMA60MT1600NHR, Littelfuse

Triac, a planar passivated chip with three quadrants operation and long-term stability of blocking currents and voltages.

Applications

  • Line rectifying 50/60 Hz
  • Softstart AC motor control
  • DC motor control
  • Power converter
  • AC power control
  • Lighting and temperature control
Technical specifications
Anzahl der Pins 3
Ausführung Thyristor
Gate-Trigger-Spannung 1.3 V
Gate-Trigger-Strom 60 mA
Gehäuse ISO-247
Haltestrom 60 mA
max. Temperatur 125 °C
min. Temperatur -55 °C
Montage THT
Spannung V RRM (Spitzensperrspannung) 1600 V
Spannungsanstiegsraten dV/dt 500 V/s
Logistics
Ursprungsland PH
Zolltarifnummer 85413000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
