CS45-08IO1 | Littelfuse

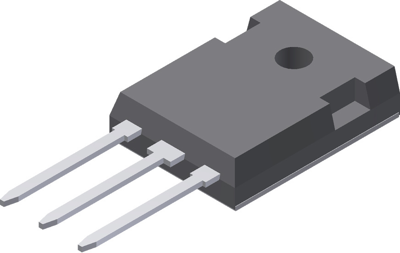

Thyristor, 800 V (RRM), 45 A, TO-247AD, Littelfuse CS45-08IO1

Order No.: 74P0088
EAN: 4099891769536
MPN:
CS45-08IO1
CS45-08IO1 Littelfuse Thyristoren,Diacs,Triacs,Quadracs
Image may differ
Unit Price (€ / pc.)
4.4744 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Total Price:
1,342.32 € *
*incl. VAT plus shipping costs
**Subject to prior sale
300 pcs.
4.4744 €

Single thyristor, CS45-08IO1, Littelfuse

Thyristor for line frequency with planar passivated chip and long-term stability.

Applications

  • Softstart AC motor control
  • DC Motor control
  • Power converter
  • Lighting and temperature control
Technical specifications
Anzahl der Pins 3
Ausführung Thyristor
Gate-Trigger-Spannung 1.5 V
Gate-Trigger-Strom 80 mA
Gehäuse TO-247AD
Haltestrom 100 mA
max. Strom 45 A
max. Temperatur 125 °C
min. Temperatur -40 °C
Montage THT
Spannung V RRM (Spitzensperrspannung) 800 V
Spannungsanstiegsraten dV/dt 1000 V/s
Logistics
Ursprungsland KR
Zolltarifnummer 85413000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
