EC103D2RP | Littelfuse

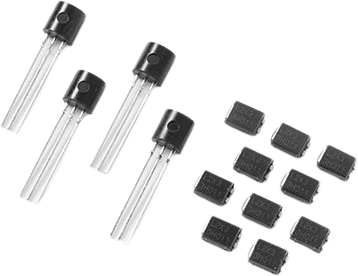

Thyristor, 400 V (RRM), TO-92, Littelfuse EC103D2RP
Unit Price (€ / pc.)
0.6188 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Thyristor, EC103D2RP, Littelfuse
Excellent unidirectional switch for phase control applications such as heating and motor speed controls.
Features
- RoHS compliant
- Glass - passivated junctions
Applications
- Typical applications are capacitive discharge systems for strobe lights and gas engine ignition. Also controls for power tools, home/brown goods and white goods appliances
Technical specifications
| Number of pins | 3 | |
| Version | Thyristor | |
| Gate trigger voltage | 0.8 V | |
| Gate trigger current | 0.05 mA | |
| Enclosure | TO-92 | |
| max. holding current | 5 mA | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Rated current | 0.8 A | |
| Voltage V RRM (peak reverse voltage) | 400 V | |
| Voltage slew rates dV/dt | 25 V/s |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85413000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
