EC103M1 | Littelfuse

Thyristor, 600 V (RRM), TO-92, Littelfuse EC103M1

Order No.: 74P0105
EAN: 4099891769703
MPN:
EC103M1
Series: EC103xx
EC103M1 Littelfuse Thyristoren,Diacs,Triacs,Quadracs

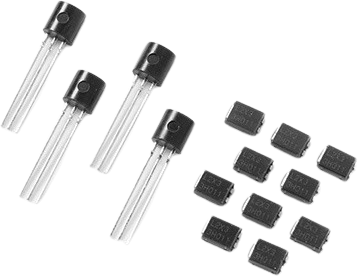

Image may differ
Unit Price (€ / pc.)
0.714 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Total Price:
1,428.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2000 pcs.
0.714 €

Thyristor, EC103M1, Littelfuse

Excellent unidirectional switch for phase control applications such as heating and motor speed controls.

Features

  • RoHS compliant
  • Glass - passivated junctions

Applications

  • Typical applications are capacitive discharge systems for strobe lights and gas engine ignition. Also controls for power tools, home/brown goods and white goods appliances
Technical specifications
Anzahl der Pins 3
Ausführung Thyristor
Gate-Trigger-Spannung 0.8 V
Gate-Trigger-Strom 0.012 mA
Gehäuse TO-92
Haltestrom 5 mA
max. Temperatur 110 °C
min. Temperatur -40 °C
Montage THT
Nennstrom 0.8 A
Spannung V RRM (Spitzensperrspannung) 600 V
Spannungsanstiegsraten dV/dt 10 V/s
Logistics
Ursprungsland CN
Zolltarifnummer 85413000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
