MCC162-14IO1 | Littelfuse

Thyristor module, 1400 V (RRM), Y4-M6, Littelfuse MCC162-14IO1

Order No.: 74P0279
EAN: 4099891771447
MPN:
MCC162-14IO1
MCC162-14IO1 Littelfuse Thyristoren,Diacs,Triacs,Quadracs

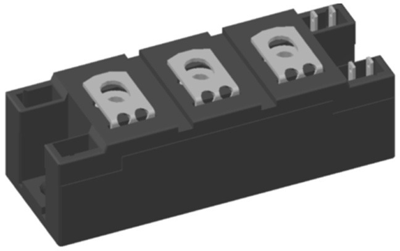

Image may differ
Unit Price (€ / pc.)
69.5436 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Total Price:
417.26 € *
*incl. VAT plus shipping costs
**Subject to prior sale
6 pcs.
69.5436 €

Thyristor module, MCC162-14IO1, LITTELFUSE

Thyristor module phase leg with an isolation voltage of 3600 V, long-term stability, advanced power cycling, and with a DCB ceramic base plate.

Features

  • Planar passivated chip
  • Direct copper bonded Al2O3 - ceramic
  • Industry standard outline
  • RoHS compliant
  • Soldering pins for PCB mounting
  • Reduced weight

Applications

  • Line rectifying 50/60 Hz
  • Softstart AC motor control
  • DC motor control
  • Power converter
  • AC power control
  • Lighting and temperature control
Technical specifications
Anzahl der Pins 7
Ausführung Thyristor-Modul
Gate-Trigger-Spannung 2.5 V
Gate-Trigger-Strom 150 mA
Gehäuse Y4-M6
Haltestrom 200 mA
max. Temperatur 100 °C
min. Temperatur -40 °C
Montage Chassismontage
Spannung V RRM (Spitzensperrspannung) 1400 V
Spannungsanstiegsraten dV/dt 1000 V/s
Logistics
Ursprungsland PH
Zolltarifnummer 85413000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
