MCR12DCNT4G | Littelfuse

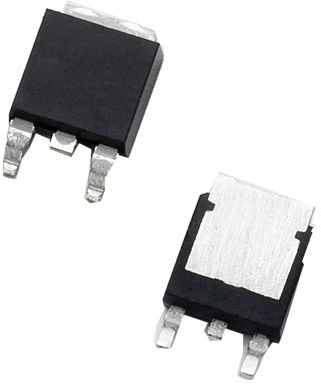

Thyristor, 800 V (RRM), TO-252, Littelfuse MCR12DCNT4G

Order No.: 74P0430
EAN: 4099891772956
MPN:
MCR12DCNT4G
Series: MCR12DCx
Littelfuse
MCR12DCNT4G Littelfuse Thyristoren,Diacs,Triacs,Quadracs
Image may differ
Unit Price (€ / pc.)
0.6783 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
Total Price:
0.68 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2500 pcs.
0.6783 €

Thyristor, MCR12DCNT4G, Littelfuse

The silicon controlled rectifier is designed for high volume, low cost, industrial and consumer applications such as motor control, process control, temperature, light and speed control.

Features

  • Small size
  • Passivated die for reliability and uniformity
  • Low level triggering and holding characteristics
Technical specifications
Number of pins 3
Version thyristor
Gate trigger voltage 1 V
Gate trigger current 20 mA
Enclosure TO-252
max. holding current 40 mA
max. operating temperature 125 °C
min. operating temperature -40 °C
Assembly SMD
Voltage V RRM (peak reverse voltage) 800 V
Voltage slew rates dV/dt 200 V/s
Logistics
Country of origin VN
Customs tariff number 85413000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
