Q4010L5TP | Littelfuse

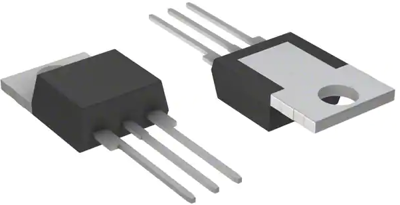

Triac, TO-220AB, Littelfuse Q4010L5TP
Unit Price (€ / pc.)
3.1178 € *
Available: 336 pcs.
Leadtime: On Request **
Total Price:
3.12 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1178 €
10 pcs.
2.7370 €
100 pcs.
2.4038 €
250 pcs.
2.3086 €
1000 pcs.
2.1658 €
*incl. VAT plus shipping costs
**Subject to prior sale
Bi-directional solid state switch, Q4010L5TP, Littelfuse
The Q4010L5TP is a 10 Amp bi-directional solid state switch designed for AC switching and phase control applications such as motor speed and temperature modulation controls, lighting controls, and static switching relays. Standard type device normally operates in Quadrants I and III triggered from AC line. This product is used in applications requiring high commutation performance such as controlling inductive loads. Isolated packages are offered with internal construction, having the case or mounting tab electrically isolated from the semiconductor chip.
Features
- RoHS-compliant
- Glass - passivated junctions
- Solid-state switching eliminates arcing or contact bounce that create voltage transients
- No contacts to wear out from reaction of switching events
- Restricted (or limited) RFI generation, depending on activation point sine wave
Technical specifications
| Number of pins | 3 | |
| Version | triac | |
| On-State Voltage | 1.3 V | |
| Gate trigger voltage | 1.6 V | |
| Gate trigger current | 50 mA | |
| Enclosure | TO-220AB | |
| max. holding current | 50 mA | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Rated current | 10 A | |
| Voltage slew rates dV/dt | 225 V/s |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85413000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
