Q4010LTTP | Littelfuse

Quadrac, 400 V (RRM), 10 A, TO-220, Littelfuse Q4010LTTP

Order No.: 74P0504
EAN: 4099891773694
MPN:
Q4010LTTP
Series: QxxxxLTx
Littelfuse
Q4010LTTP Littelfuse Thyristoren,Diacs,Triacs,Quadracs

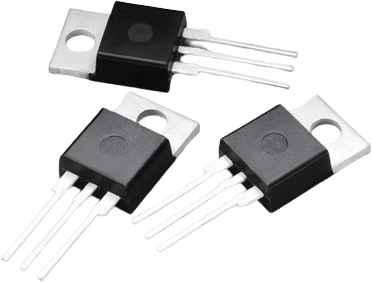

Image may differ
Unit Price (€ / pc.)
2.0706 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
2.07 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
2.0706 €

Triac, Q4010LTTP, Littelfuse

The Quadrac device is a bidirectional AC switch and is gate controlled for either polarity of main terminal voltage. Its primary purpose is for AC switching and phase control applications such as speed controls, temperature modulation controls, and lighting controls where noise immunity is required.

Features

  • RoHS compliant
  • Glass - passivated junctions
Technical specifications
Number of pins 3
Version quadrac
Enclosure TO-220
max. holding current 60 mA
Max. current 10 A
max. operating temperature 125 °C
min. operating temperature -40 °C
Assembly THT
Voltage V RRM (peak reverse voltage) 400 V
Voltage slew rates dV/dt 150 V/s
Logistics
Country of origin CN
Customs tariff number 85413000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
