QJ8040KH7TP | Littelfuse

Alternistor triac, 800 V (RRM), 40 A, TO-218AC, Littelfuse QJ8040KH7TP

Order No.: 74P0542
EAN: 4099891774073
MPN:
QJ8040KH7TP
Series: QJxx40xx
QJ8040KH7TP Littelfuse Thyristoren,Diacs,Triacs,Quadracs

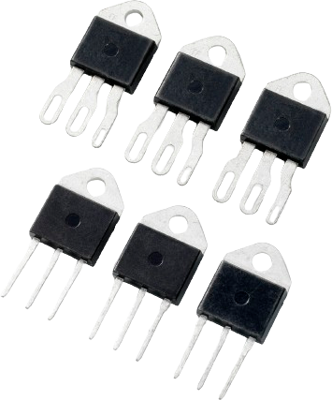

Image may differ
Unit Price (€ / pc.)
11.0908 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Total Price:
2,772.70 € *
*incl. VAT plus shipping costs
**Subject to prior sale
250 pcs.
11.0908 €

Triac, QJ8040KH7TP, Littelfuse

The bidirectional solid state switch of the 40 ampere is designed for AC switching and phase control applications such as motor speed and temperature modulation control. temperature modulation controls, lighting controls, and static switching relays.

Features

  • RoHS compliant
  • UL recognized to UL 1557 as an electrically isolated semiconductor device
  • High TJ of 150 °C

Applications

  • Excellent for AC switching and phase control applications such as heating, lighting, and motor speed controls
  • Typical applications are AC solid-state switches, industrial power tools, exercise equipment, white goods and commercial appliances
Technical specifications
Anzahl der Pins 3
Ausführung Alternistor Triac
Gate-Trigger-Spannung 1.3 V
Gate-Trigger-Strom 100 mA
Gehäuse TO-218AC
Haltestrom 100 mA
max. Strom 40 A
max. Temperatur 150 °C
min. Temperatur -40 °C
Montage THT
Spannung V RRM (Spitzensperrspannung) 800 V
Spannungsanstiegsraten dV/dt 2000 V/s
Logistics
Ursprungsland CN
Zolltarifnummer 85413000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
