QK004D4TP | Littelfuse

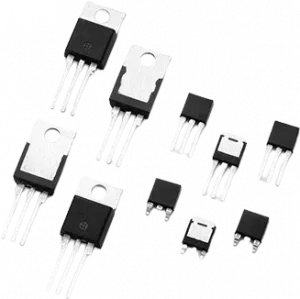

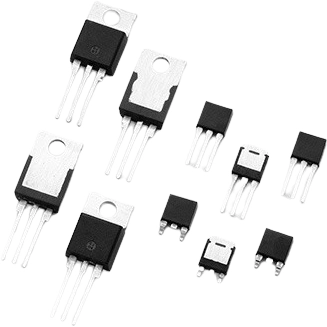

Triac, 1 kV (RRM), 4 A, TO-252, Littelfuse QK004D4TP
Unit Price (€ / pc.)
1.5708 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Triac, QK004D4TP, Littelfuse
4 Amp bi-directional solid state switch is designed for AC switching and phase control applications such as motor speed and temperature modulation controls, lighting controls, and static switching relays.
Features
- RoHS compliant
- Glass - passivated junctions
Applications
- Typical applications are AC solid-state switches, power tools, home/brown goods and white goods appliances
Technical specifications
| Number of pins | 3 | |
| Version | Triac | |
| Gate trigger voltage | 1.3 V | |
| Gate trigger current | 25 mA | |
| Enclosure | TO-252 | |
| max. holding current | 30 mA | |
| Max. current | 4 A | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Voltage V RRM (peak reverse voltage) | 1 kV | |
| Voltage slew rates dV/dt | 50 V/s |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85413000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
