S4008LS3TP | Littelfuse

SCR, 400 V (RRM), TO-220AB, Littelfuse S4008LS3TP

Order No.: 74P0554
EAN: 4099891774196
MPN:
S4008LS3TP
Series: Sxx08x
S4008LS3TP Littelfuse Thyristoren,Diacs,Triacs,Quadracs

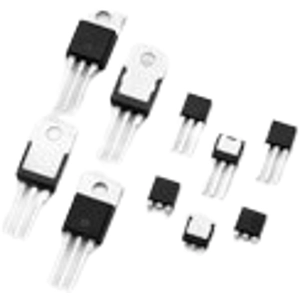

Image may differ
Unit Price (€ / pc.)
1.3090 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
1,309.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
1.3090 €

SCR, S4008LS3TP, Littelfuse

The S4008LS3TP is ideal for uni-directional switch applications such as phase control, heating, motor speed controls, converters/rectifiers and capacitive discharge ignitions.

Features

  • Glass - passivated junctions
  • Halogen free and RoHS compliant

Applications

  • Typical applications are capacitive discharge systems for strobe lights, nailers, staplers and gas engine ignition. Also AC control and rectification for power tools, home/brown goods and white goods appliances and 2-wheeler rectifier/ battery regulator
Technical specifications
Anzahl der Pins 3
Ausführung SCR
Gate-Trigger-Spannung 0.8 V
Gate-Trigger-Strom 0.5 mA
Gehäuse TO-220AB
Haltestrom 8 mA
max. Temperatur 125 °C
min. Temperatur -40 °C
Montage THT
Nennstrom 8 A
Spannung V RRM (Spitzensperrspannung) 400 V
Spannungsanstiegsraten dV/dt 8 V/s
Logistics
Ursprungsland CN
Zolltarifnummer 85413000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
