S4035KTP | Littelfuse

SCR, 400 V (RRM), TO-218, Littelfuse S4035KTP

Order No.: 74P0565
EAN: 4099891774301
MPN:
S4035KTP
Series: Sxx35x
S4035KTP Littelfuse Thyristoren,Diacs,Triacs,Quadracs

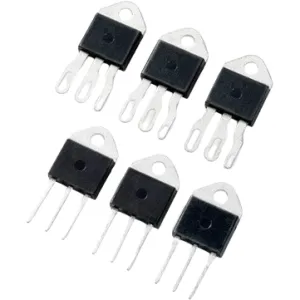

Image may differ
Unit Price (€ / pc.)
4.3435 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Total Price:
1,085.88 € *
*incl. VAT plus shipping costs
**Subject to prior sale
250 pcs.
4.3435 €

SCR, S4035KTP, Littelfuse

Excellent unidirectional switch for phase control applications such as heating and motor speed controls. Standard phase control SCRs are triggered with few milliamperes of current at less than 1.5V potential.

Features

  • RoHS compliant
  • Glass - passivated junctions

Applications

  • Typical applications are AC solid-state switches, industrial power tools, exercise equipment, white goods and commercial appliances
Technical specifications
Number of pins 3
Version SCR
Gate trigger voltage 1.5 V
Gate trigger current 40 mA
Enclosure TO-218
max. holding current 50 mA
max. operating temperature 125 °C
min. operating temperature -40 °C
Assembly THT
Voltage V RRM (peak reverse voltage) 400 V
Logistics
Country of origin CN
Customs tariff number 85413000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
