S4040RQTP | Littelfuse

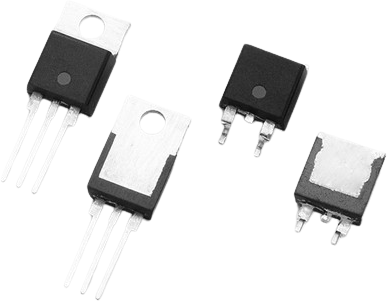

SCR, 400 V (RRM), TO-220AB, Littelfuse S4040RQTP
Unit Price (€ / pc.)
4.1174 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
SCR, S4040RQTP, Littelfuse
The S4040RQTP offer fast turn-off time (tq) characteristics required for applications such as power inverters, switching regulator, and high frequency pulse circuits. These fast turn-off time SCRs offer high dv/dt and high di/dt characteristics required in higher frequency (>1000 PPS) switching circuits.
Features
- RoHS compliant
- Glass - passivated junctions
Applications
- Fast turn-off time SCRs are ideal for multi phase voltage regulator circuits, DC/AC inverters, and higher frequency pulsing power supplies
Technical specifications
| Number of pins | 3 | |
| Version | SCR | |
| Gate trigger voltage | 1.5 V | |
| Gate trigger current | 35 mA | |
| Enclosure | TO-220AB | |
| max. holding current | 70 mA | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Voltage V RRM (peak reverse voltage) | 400 V | |
| Voltage slew rates dV/dt | 550 V/s |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85413000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
