S4X8ES1 | Littelfuse

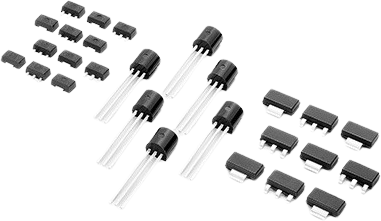

SCR, 400 V (RRM), TO-92, Littelfuse S4X8ES1
Unit Price (€ / pc.)
0.3094 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
SCR, S4X8ES1, Littelfuse
The S4X8ES1 offer high static dv/dt and lower turn-off (Tq) sensitive SCR with its small die planar construction design. It is specifically designed for GFCI (Ground Fault Circuit Interrupter) and gas ignition applications. All SCRs junctions are glass-passivated to ensure long term reliability and parametric stability.
Features
- RoHS compliant
- Halogen-free
- High dv/dt noise immunity
- Sensitive gate for direct microprocessor interface
Applications
- The device is specifically designed for GFCI (Ground Fault Circuit Interrupter) and gas ignition applications
Technical specifications
| Anzahl der Pins | 3 | |
| Ausführung | SCR | |
| Gate-Trigger-Spannung | 0.8 V | |
| Gate-Trigger-Strom | 0.005 mA | |
| Gehäuse | TO-92 | |
| Haltestrom | 5 mA | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -40 °C | |
| Montage | THT | |
| Spannung V RRM (Spitzensperrspannung) | 400 V |
Download
Logistics
| Ursprungsland | TH |
| Zolltarifnummer | 85413000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
