S6008RS2TP | Littelfuse

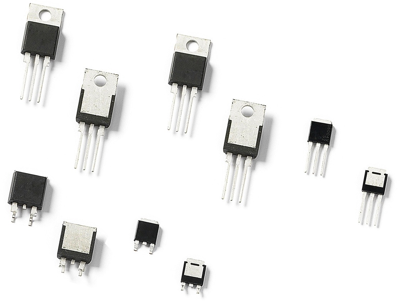

SCR, 600 V (RRM), TO-220AB, Littelfuse S6008RS2TP
Unit Price (€ / pc.)
1.2614 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
SCR, S6008RS2TP, Littelfuse
The S6008RS2TP is ideal for uni-directional switch applications such as phase control, heating, motor speed controls, converters/rectifiers and capacitive discharge ignitions.
Features
- Glass - passivated junctions
- Halogen free
- RoHS compliant
Applications
- Typical applications are capacitive discharge systems for strobe lights, nailers, staplers and gas engine ignition. Also AC control and rectification for power tools, home/brown goods and white goods appliances and 2-wheeler rectifier/ battery regulator
Technical specifications
| Number of pins | 3 | |
| Version | SCR | |
| Gate trigger voltage | 0.8 V | |
| Gate trigger current | 0.2 mA | |
| Enclosure | TO-220AB | |
| max. holding current | 6 mA | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | THT | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| Voltage slew rates dV/dt | 225 V/s |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85413000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
