S6S3RP | Littelfuse

SCR, 600 V (RRM), Compak, Littelfuse S6S3RP

Order No.: 74P0633
EAN: 4099891774981
MPN:
S6S3RP
Series: SxSx
S6S3RP Littelfuse Thyristoren,Diacs,Triacs,Quadracs

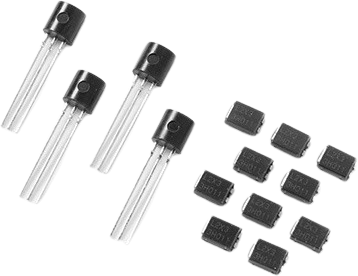

Image may differ
Unit Price (€ / pc.)
0.7973 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
1,993.25 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2500 pcs.
0.7973 €

SCR, S6S3RP, LITTELFUSE

Excellent unidirectional switch for phase control applications such as heating and motor speed controls. Sensitive gate SCR is easily triggered with microAmps of current as furnished by sense coils, proximity switches, and microprocessors.

Features

  • Glass - passivated junctions
  • RoHS compliant

Applications

  • Typical applications are capacitive discharge systems for strobe lights and gas engine ignition. Also controls for power tools, home/brown goods and white goods appliances
Technical specifications
Anzahl der Pins 3
Ausführung SCR
Gate-Trigger-Spannung 0.8 V
Gate-Trigger-Strom 0.5 mA
Gehäuse Compak
Haltestrom 8 mA
max. Temperatur 110 °C
min. Temperatur -40 °C
Montage SMD
Nennstrom 0.8 A
Spannung V RRM (Spitzensperrspannung) 600 V
Spannungsanstiegsraten dV/dt 20 V/s
Logistics
Ursprungsland CN
Zolltarifnummer 85413000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
