S8016NTP | Littelfuse

SCR, 800 V (RRM), TO-263, Littelfuse S8016NTP

Order No.: 74P0657
EAN: 4099891775223
MPN:
S8016NTP
Series: Sxx16x
S8016NTP Littelfuse Thyristoren,Diacs,Triacs,Quadracs

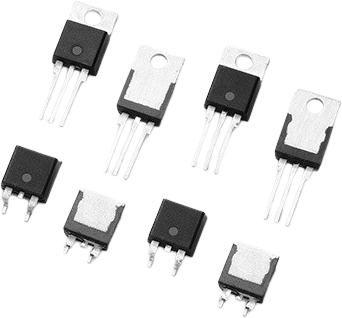

Image may differ
Unit Price (€ / pc.)
1.9516 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
1,951.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
1.9516 €

SCR, S8016NTP, LITTELFUSE

Excellent unidirectional switch for phase control applications such as heating and motor speed controls. Standard phase control SCR is triggered with a few milliamperes of current at less than 1.5V potential.

Features

  • RoHS-compliant
  • Glass – passivated junctions

Applications

  • Typical applications are capacitive discharge systems for strobe lights, nailers, staplers and gas engine ignition. Also controls for power tools, home/brown goods and white goods appliances
Technical specifications
Anzahl der Pins 3
Ausführung SCR
Gate-Trigger-Spannung 1.5 V
Gate-Trigger-Strom 30 mA
Gehäuse TO-263
Haltestrom 40 mA
max. Temperatur 125 °C
min. Temperatur -40 °C
Montage SMD
Nennstrom 16 A
Spannung V RRM (Spitzensperrspannung) 800 V
Spannungsanstiegsraten dV/dt 300 V/s
Logistics
Ursprungsland CN
Zolltarifnummer 85413000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
