S8055NTP | Littelfuse

SCR, 800 V (RRM), TO-263, Littelfuse S8055NTP

Order No.: 74P0666
EAN: 4099891775315
MPN:
S8055NTP
Series: Sxx55x
S8055NTP Littelfuse Thyristoren,Diacs,Triacs,Quadracs

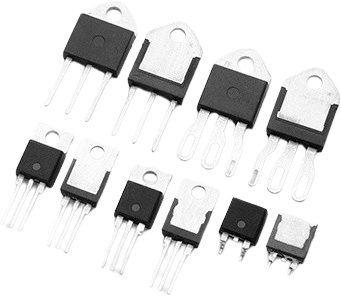

Image may differ
Unit Price (€ / pc.)
4.2007 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
4,200.70 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
4.2007 €

SCR, S8055NTP, Littelfuse

Excellent unidirectional switch for phase control applications such as heating and motor speed controls.

Features

  • RoHS compliant
  • Glass - passivated junctions

Applications

  • Typical applications are AC solid-state switches, industrial power tools, exercise equipment, white goods and commercial appliances
Technical specifications
Anzahl der Pins 3
Ausführung SCR
Gate-Trigger-Spannung 1.5 V
Gate-Trigger-Strom 40 mA
Gehäuse TO-263
Haltestrom 60 mA
max. Temperatur 125 °C
min. Temperatur -40 °C
Montage SMD
Spannung V RRM (Spitzensperrspannung) 800 V
Logistics
Ursprungsland CN
Zolltarifnummer 85413000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
