SK008VTP | Littelfuse

SCR, 1 kV (RRM), TO-251, Littelfuse SK008VTP

Order No.: 74P0686
EAN: 4099891775513
MPN:
SK008VTP
Series: Sxx08x
SK008VTP Littelfuse Thyristoren,Diacs,Triacs,Quadracs

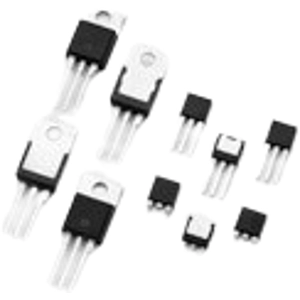

Image may differ
Unit Price (€ / pc.)
1.19 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Total Price:
892.50 € *
*incl. VAT plus shipping costs
**Subject to prior sale
750 pcs.
1.19 €

SCR, SK008VTP, Littelfuse

The SK008VTP is ideal for uni-directional switch applications such as phase control, heating, motor speed controls, converters/rectifiers and capacitive discharge ignitions.

Features

  • Glass - passivated junctions
  • Halogen free
  • RoHS compliant

Applications

  • Typical applications are capacitive discharge systems for strobe lights, nailers, staplers and gas engine ignition. Also AC control and rectification for power tools, home/brown goods and white goods appliances and 2-wheeler rectifier/ battery regulator
Technical specifications
Anzahl der Pins 3
Ausführung SCR
Gate-Trigger-Spannung 1.5 V
Gate-Trigger-Strom 15 mA
Gehäuse TO-251
Haltestrom 30 mA
max. Temperatur 125 °C
min. Temperatur -40 °C
Montage THT
Spannung V RRM (Spitzensperrspannung) 1 kV
Logistics
Ursprungsland CN
Zolltarifnummer 85413000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
