1.5KE22CA | Littelfuse

TVS diode, Bidirectional, 1.5 kW, 18.8 V, DO-201AA, Littelfuse 1.5KE22CA

Order No.: 56P2605
EAN: 4099879069924
MPN:
1.5KE22CA
Series: 1.5KE
Littelfuse

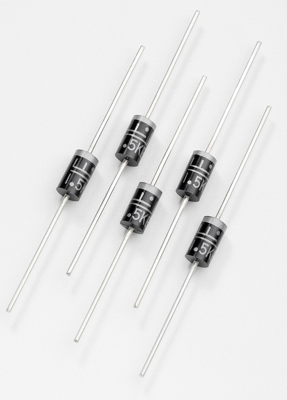

1.5KE22CA Littelfuse TVS Diodes
Image may differ
Print
Key Specification:
Pulse power loss 1.5 kW
Rated blocking voltage 18.8 V
Breakdown voltage 20.9 V
Continuous power loss 6.5 W
Show 9 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.6783 € *
Available: 1,118 pcs.
Leadtime: 14 Weeks **
Total Price:
0.68 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6783 €
10 pcs.
0.4879 €
100 pcs.
0.4165 €
500 pcs.
0.3689 €
1000 pcs.
0.3332 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations
TVS DIODE AXIAL LEAD - 1.5KE22CA TR
Technical specifications
Version Bidirectional
Continuous power loss 6.5 W
Breakdown voltage 20.9 V
Enclosure DO-201AA
Pulse power loss 1.5 kW
max. operating temperature 175 °C
min. operating temperature -55 °C
Assembly THT
Rated blocking voltage 18.8 V
Show similar products 0
Logistics
Country of origin CN
Customs tariff number 85411000
Original Packaging Reel with 1,200 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
