AQ12C-01FTG | Littelfuse

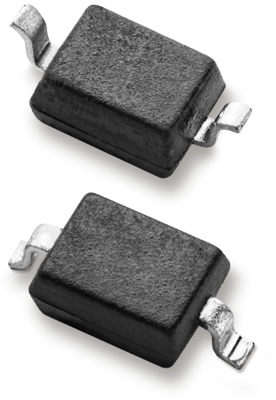

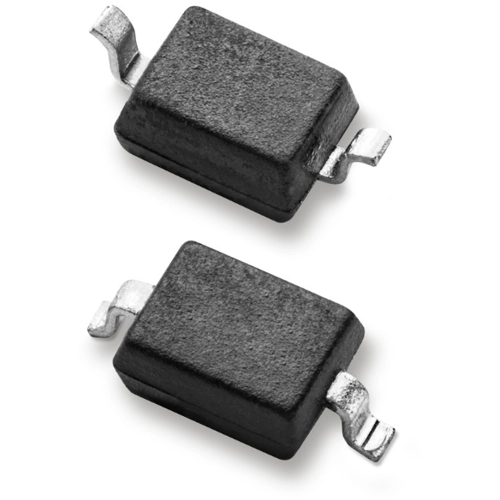

SMD TVS diode, bidirectional, 450 W, 12 V, SOD323, Littelfuse AQ12C-01FTG
Order No.: 74P2933
EAN: 4099891797980
MPN:
AQ12C-01FTG
Unit Price (€ / pc.)
0.2071 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Bidirectional TVS diode, AQ12C-01FTG, Littelfuse
This product is designed to replace multilayer varistors (MLVs) in electronic equipment for low speed and DC applications. It will protect any sensitive equipment from damage due to electrostatic discharge (ESD) and other transient events. It can safely absorb repetitive ESD strikes of ±30 kV (contact and air discharge as defined in IEC 61000-4-2) without any performance degradation.
Features
- PPAP Capable
- AEC-Q101 qualified
- Halogen free, lead free and RoHS compliant
- Moisture sensitivity level(MSL -1)
Applications
- Switches/Buttons
- Test equipment/Instrumentation
- Medical equipment
- Notebooks/Desktops/Servers
- Automotive applications
Technical specifications
| Version | bidirectional | |
| Breakdown voltage | 13.3 V | |
| Enclosure | SOD323 | |
| Pulse power loss | 450 W | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Rated blocking voltage | 12 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
