AQ3041-01ETG | Littelfuse

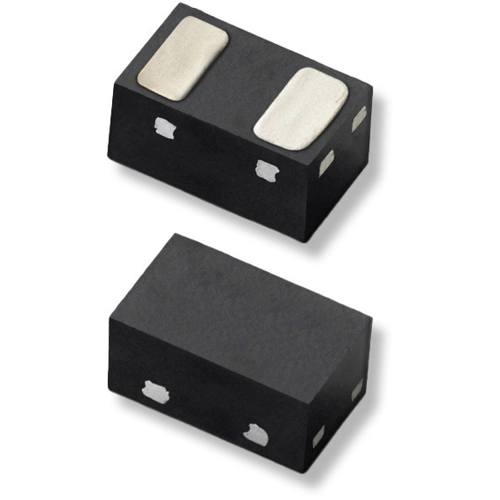

SMD TVS diode, unidirectional, 5 V, SOD882, Littelfuse AQ3041-01ETG
Order No.: 74P2944
EAN: 4099891798093
MPN:
AQ3041-01ETG
Unit Price (€ / pc.)
0.1285 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Low capacitance diode, AQ3041-01ETG, Littelfuse
The AQ3041-01ETG low capacitance rail to rail diode provides protection for electronic equipment that may experience destructive electrostatic discharges (ESD). This robust diode can safely absorb repetitive ESD strikes above the maximum level specified in IEC 61000-4-2 international standard (±20kV contact discharge) without performance degradation.
Features
- PPAP Capable
- AEC-Q101 qualified
- Moisture sensitivity level(MSL -1)
- Halogen-free, lead-free and RoHS compliant
Applications
- Tablets
- Ultrabook
- Smart phones
- Digital cameras
- Portable medical
- Automotive applications
Technical specifications
| Version | unidirectional | |
| Enclosure | SOD882 | |
| Capacity | 0.5 pF | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Rated blocking voltage | 5 V |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
