AQ3130-01ETG | Littelfuse

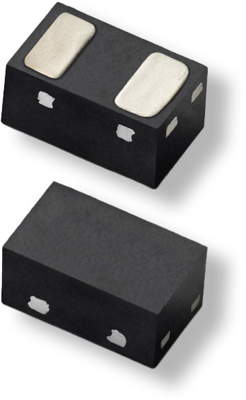

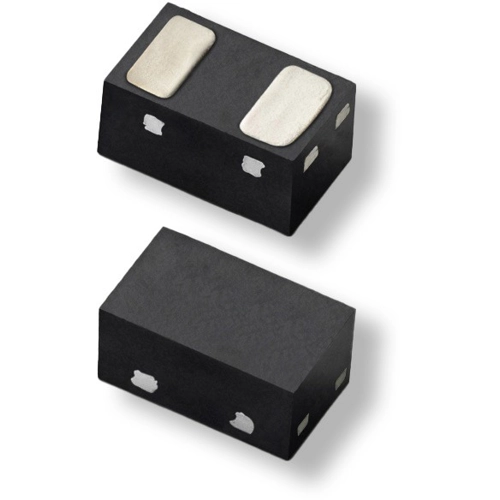

SMD TVS diode, bidirectional, 28 V, SOD882, Littelfuse AQ3130-01ETG
Order No.: 74P2949
EAN: 4099891798147
MPN:
AQ3130-01ETG
Unit Price (€ / pc.)
0.1666 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Bidirectional discrete TVS diode, AQ3130-01ETG, Littelfuse
The AQ3130-01ETG includes back-to-back TVS diodes fabricated in a proprietary silicon avalanche technology to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). These robust diodes can safely absorb repetitive ESD strikes up to the maximum level specified in the IEC 61000-4-2 international standard without performance degradation.
Features
- PPAP Capable
- AEC-Q101 qualified
- Moisture sensitivity level(MSL -1)
- Halogen-free, lead-free and RoHS compliant
Applications
- Tablets
- Ultrabook
- Smart phones
- Digital cameras
- Portable medical
- Automotive applications
Technical specifications
| Version | bidirectional | |
| Enclosure | SOD882 | |
| Capacity | 0.3 pF | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Rated blocking voltage | 28 V |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
