AQ3522-01LTG | Littelfuse

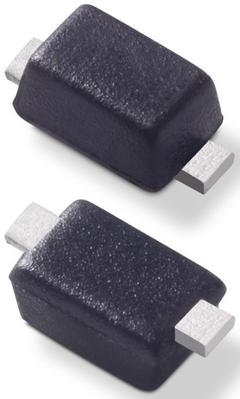

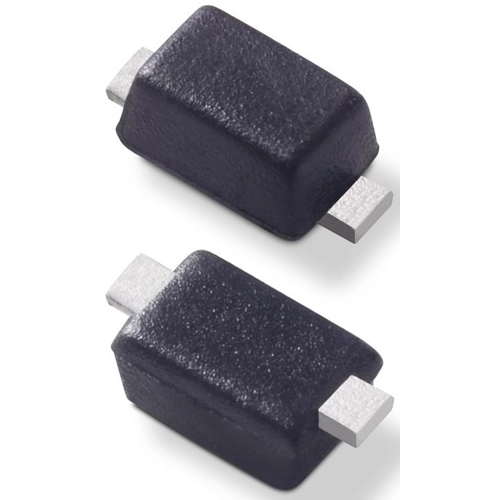

SMD TVS diode, bidirectional, 5 V, SOD523, Littelfuse AQ3522-01LTG
Order No.: 74P2952
EAN: 4099891798178
MPN:
AQ3522-01LTG
Unit Price (€ / pc.)
0.1654 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Bidirectional TVS diode, AQ3522-01LTG, Littelfuse
The AQ3522-01LTG integrates ultra low capacitance diodes to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). This robust component can safely absorb repetitive ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard (Level 4, ±8kV contact discharge) without performance degradation.
Features
- PPAP Capable
- AEC-Q101 qualified
- Moisture sensitivity level(MSL -1)
- Halogen-free, lead-free and RoHS compliant
Applications
- Ultra-high speed data lines
- LVDS interfaces
- Automotive application
- Consumer, mobile and portable electronics
- Tablet PC and external storage with high speed interfaces
- Applications requiring high ESD performance in small packages
- USB 3.1, 3.0, 2.0
- HDMI 2.0, 1.4a, 1.3
Technical specifications
| Version | bidirectional | |
| Breakdown voltage | 8.5 V | |
| Enclosure | SOD523 | |
| Capacity | 0.15 pF | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Rated blocking voltage | 5 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
