P4KE11A-B | Littelfuse

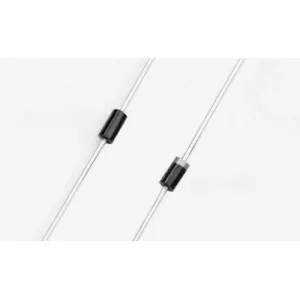

TVS diode, unidirectional, 400 W, 9.4 V, DO-41, Littelfuse P4KE11A-B
Unit Price (€ / pc.)
0.1975 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
TVS Diode, P4KE11A-B, Littelfuse
The P4KE11A-B TVS Diode is designed specifically to protect sensitive electronic equipment from EFTs, ESD, and induced lightning transients. This product is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial ICT equipment and consumer electronic applications.
Features
- Excellent clamping capability
- Low incremental surge resistance
- Typical failure mode is a short circuit
- Halogen-free
- RoHS compliant
- UL Recognized compound meeting flammability rating V-0
Technical specifications
| Ausführung | Unidirektional | |
| Dauerverlustleistung | 1.5 W | |
| Durchbruchspannung | 10.5 V | |
| Gehäuse | DO-41 | |
| Impuls-Verlustleistung | 400 W | |
| max. Temperatur | 175 °C | |
| min. Temperatur | -50 °C | |
| Montage | THT | |
| Sperrspannung | 9.4 V |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
