P6KE47A | Littelfuse

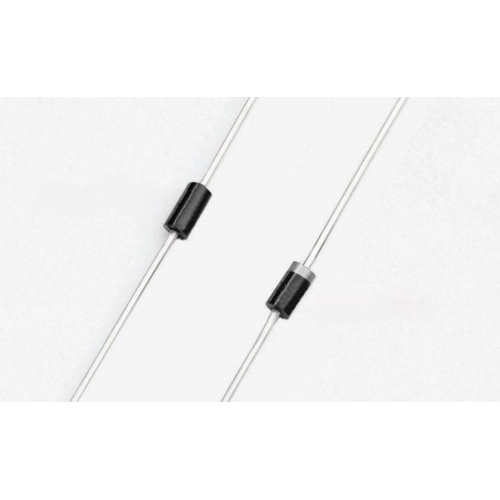

TVS diode, unidirectional, 600 W, 40.2 V, DO-15, Littelfuse P6KE47A
Unit Price (€ / pc.)
0.2166 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
TVS Diode, P6KE47A, Littelfuse
The P6KE47A TVS diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This product is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.
Features
- Excellent clamping capability
- Low incremental surge resistance
- Typical failure mode is short from over-specified voltage or current
- UL Recognized epoxy meeting flammability classification V-0
- Halogen-free
- RoHS compliant
- Matte tin, lead-free plated
Technical specifications
| Ausführung | Unidirektional | |
| Dauerverlustleistung | 5 W | |
| Durchbruchspannung | 44.7 V | |
| Gehäuse | DO-15 | |
| Impuls-Verlustleistung | 600 W | |
| max. Temperatur | 175 °C | |
| min. Temperatur | -50 °C | |
| Montage | THT | |
| Sperrspannung | 40.2 V |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
