SLD8S27A | Littelfuse
SMD TVS diode, unidirectional, 7 kW, 27 V, SMTO-263, Littelfuse SLD8S27A
Unit Price (€ / pc.)
2.0468 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
TVS Diode, SLD8S27A, Littelfuse

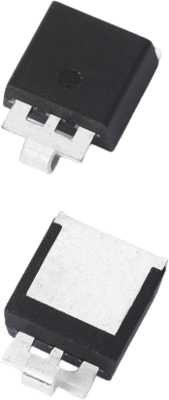

The SLD8S27A TVS Diode is housed in a SMTO-263 package with lead modifications. It is designed to protect sensitive electronics against lightning and inductive load switching voltage transient events for severe Automotive Load Dump applications.
Features
- AEC-Q101 qualified
- Glass passivated chip junction in modified TO-263 package
- Excellent clamping capability
- Low incremental surge resistance
- Halogen free and RoHS compliant
- Matte tin lead-free plated
Technical specifications
| Version | unidirectional | |
| Continuous power loss | 8 W | |
| Breakdown voltage | 29.9 V | |
| Enclosure | SMTO-263 | |
| Pulse power loss | 7 kW | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Rated blocking voltage | 27 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
