SMA6J54A | Littelfuse
SMD TVS diode, unidirectional, 600 W, 54 V, DO-214AC, Littelfuse SMA6J54A
Unit Price (€ / pc.)
0.1964 € *
Available: 0 pcs.
Leadtime: 12 Weeks **

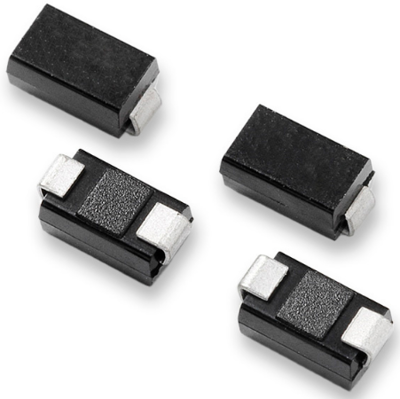

TVS Diode, SMA6J54A, Littelfuse
The SMA6J54A TVS Diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This product is ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Features
- Built-in strain relief
- Glass passivated junction
- Low inductance
- Excellent clamping capability
- Matte tin lead-free plated
Technical specifications
| Ausführung | Unidirektional | |
| Dauerverlustleistung | 3.3 W | |
| Durchbruchspannung | 60 V | |
| Gehäuse | DO-214AC | |
| Impuls-Verlustleistung | 600 W | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -65 °C | |
| Montage | SMD | |
| Sperrspannung | 54 V |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
