SMAJ26A | Littelfuse

SMD TVS diode, Unidirectional, 400 W, 26 V, DO-214AC, Littelfuse SMAJ26A

Order No.: 37S2024
EAN: 4099879068934
MPN:
SMAJ26A
Series: SMAJ
Littelfuse

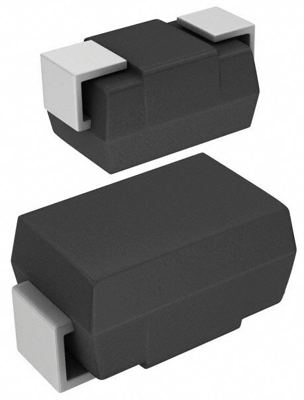

SMAJ26A Littelfuse TVS Diodes Image 1

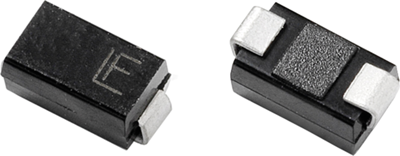

SMAJ26A Littelfuse TVS Diodes Image 2
Image may differ
Print
Key Specification:
Pulse power loss 400 W
Rated blocking voltage 26 V
Breakdown voltage 28.9 V
Continuous power loss 3.3 W
Show 5 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.1940 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Add to Cart
Total Price:
0.19 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5000 pcs.
0.1940 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

SMD-TVS-Dioden Typ Littelfuse SMAJ.

Mit geringer Induktivität, UL-gelistet; Impuls-Spitzenverlustleistung: 400 W, Gehäuse: DO214AC, Betriebstemperatur: –55 bis +150 °C. Tabellenangaben: Typ, Nennspannung.

Unidirectionale Ausführung.

Type: SMAJ26A, 26 V
Technical specifications
Version Unidirectional
Continuous power loss 3.3 W
Breakdown voltage 28.9 V
Enclosure DO-214AC
Pulse power loss 400 W
max. operating temperature 150 °C
min. operating temperature -65 °C
Assembly SMD
Rated blocking voltage 26 V
Show similar products 0
Logistics
Country of origin CN
Customs tariff number 85411000
MSL MSL 1
Original Packaging Reel with 5,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
