SMAJ33CA | Littelfuse

SMD TVS diode, Bidirectional, 400 W, 33 V, DO-214AC, Littelfuse SMAJ33CA

Order No.: 37S2074
EAN: 4099879069108
MPN:
SMAJ33CA
Series: SMAJ
Littelfuse

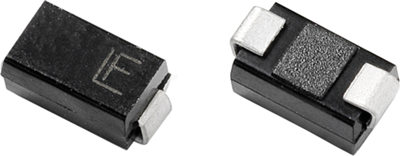

SMAJ33CA Littelfuse TVS Diodes Image 1

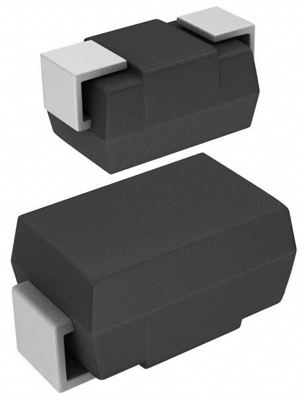

SMAJ33CA Littelfuse TVS Diodes Image 2
Image may differ
Unit Price (€ / pc.)
0.3332 € *
Available: 176 pcs.
Available in 4 Days: 10,000 pcs.
Leadtime: 14 Weeks **
Total Price:
0.33 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3332 €
10 pcs.
0.2380 €
100 pcs.
0.2035 €
*incl. VAT plus shipping costs
**Subject to prior sale

SMD-TVS-Dioden Typ Littelfuse SMAJ.

Mit geringer Induktivität, UL-gelistet; Impuls-Spitzenverlustleistung: 400 W, Gehäuse: DO214AC, Betriebstemperatur: –55 bis +150 °C. Tabellenangaben: Typ, Nennspannung.

Bidirektionale Ausführung.

Type: SMAJ33CA, 33 V

Technical specifications
Version Bidirectional
Continuous power loss 3.3 W
Breakdown voltage 36.7 V
Enclosure DO-214AC
Pulse power loss 400 W
max. operating temperature 150 °C
min. operating temperature -65 °C
Assembly SMD
Rated blocking voltage 33 V
Logistics
Country of origin CN
Customs tariff number 85411000
MSL MSL 1
Original Packaging Reel with 5,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
