SMAJ7.0CA | Littelfuse

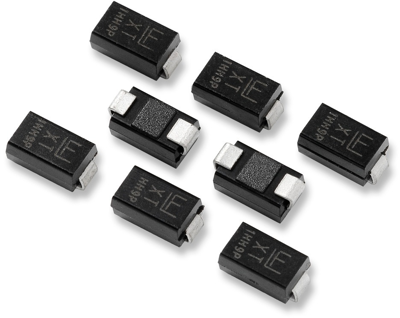

SMD TVS diode, Bidirectional, 400 W, 7 V, DO-214AC, Littelfuse SMAJ7.0CA
Unit Price (€ / pc.)
0.2059 € *
Available: 0 pcs.
Available in 4 Days: 9,980 pcs.
Leadtime: 12 Weeks **
TVS Diode, SMAJ7.0CA, Littelfuse
The SMAJ7.0CA TVS Diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This product is ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
Features
- Built-in strain relief
- Glass passivated junction
- Low inductance
- Halogen free and RoHS compliant
- Matte tin lead-free plated
Technical specifications
| Version | Bidirectional | |
| Continuous power loss | 3.3 W | |
| Breakdown voltage | 7.78 V | |
| Enclosure | DO-214AC | |
| Pulse power loss | 400 W | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -65 °C | |
| Assembly | SMD | |
| Rated blocking voltage | 7 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
