SMCJ440A | Littelfuse

SMD TVS diode, unidirectional, 1.5 kW, 440 V, DO-214AB, Littelfuse SMCJ440A

Order No.: 37S4032
EAN: 4099879069498
MPN:
SMCJ440A
Series: SMCJ
Littelfuse

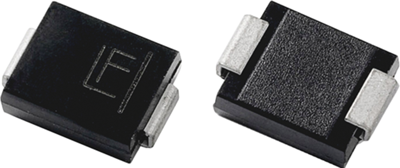

SMCJ440A Littelfuse TVS Diodes
Image may differ
Print
Key Specification:
Pulse power loss 1.5 kW
Rated blocking voltage 440 V
Breakdown voltage 492 V
Continuous power loss 6.5 W
Show 3 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.2796 € *
Available: 219 pcs.
Leadtime: 13 Weeks **
Total Price:
0.28 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.2796 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

SMD-TVS-Dioden Typ Littelfuse SMCJ.

UL-gelistet; Impuls-Spitzenverlustleistung: 1500 W, Gehäuse: DO214AB, Betriebstemperatur: –55 bis +150 °C. Tabellenangaben: Typ, Nennspannung.

Unidirektionale Ausführung.

Type: SMCJ440A, 440 A
Technical specifications
Version unidirectional
Continuous power loss 6.5 W
Breakdown voltage 492 V
Enclosure DO-214AB
Pulse power loss 1.5 kW
max. operating temperature 150 °C
min. operating temperature -65 °C
Assembly SMD
Rated blocking voltage 440 V
Show similar products 0
Logistics
Country of origin CN
Customs tariff number 85411000
MSL MSL 1
Original Packaging Reel with 3,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
