SMDJ12A | Littelfuse

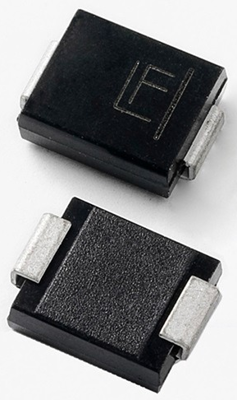

Name: SMD TVS diode, Unidirectional, 3 kW, 12 V, DO-214AB, Littelfuse SMDJ12A
Brand: Littelfuse
SKU: 57P9492
Price: 1.01 EUR
Availability: InStock

SMD TVS diode, Unidirectional, 3 kW, 12 V, DO-214AB, Littelfuse SMDJ12A

Order No.: 57P9492

EAN: 4099879072337

MPN:

SMDJ12A

Series: SMDJ

Image may differ

Key Specification:

Pulse power loss 3 kW

Rated blocking voltage 12 V

Breakdown voltage 13.3 V

Continuous power loss 6.5 W

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.0115 € *

Available: 2,969 pcs.

Leadtime: 13 Weeks **

Total Price:

1.01 € *

Price list

Quantity

Price per unit*

1 pcs.

1.0115 €

10 pcs.

0.7259 €

100 pcs.

0.6188 €

500 pcs.

0.5355 €

1000 pcs.

0.4879 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

TVS 3KW 12V 5%UNI DO-214AB TR13 RoHS

Technical specifications

	Version	Unidirectional
	Continuous power loss	6.5 W
	Breakdown voltage	13.3 V
	Enclosure	DO-214AB
	Pulse power loss	3 kW
	max. operating temperature	150 °C
	min. operating temperature	-65 °C
	Assembly	SMD
	Rated blocking voltage	12 V
