SP1002-02JTG | Littelfuse

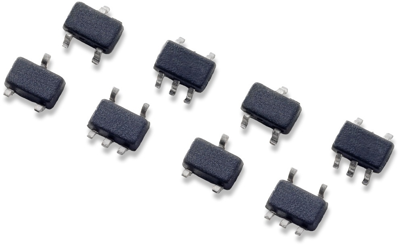

SMD TVS diode, bidirectional, 6 V, SC70-5L, Littelfuse SP1002-02JTG
Unit Price (€ / pc.)
0.1821 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Bidirectional TVS Array, SP1002-02JTG, Littelfuse
This bidirectional TVS Array provides a high level of protection for electronic equipment that may experience destructive electrostatic discharges (ESD). Its very low loading capacitance also makes it ideal for protecting highspeed signal pins.
Features
- AEC-Q101 Qualified
- RoHS compliant and lead free
- Small package saves board space
Applications
- Computer peripherals
- Mobile phones
- Digital cameras
- Desktops/Notebooks
- DVD Players
- MP3/PMP
Technical specifications
| Version | Bidirektional | |
| Enclosure | SC70-5L | |
| Capacity | 5 pF | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Rated blocking voltage | 6 V |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
