SP3002-04JTG | Littelfuse

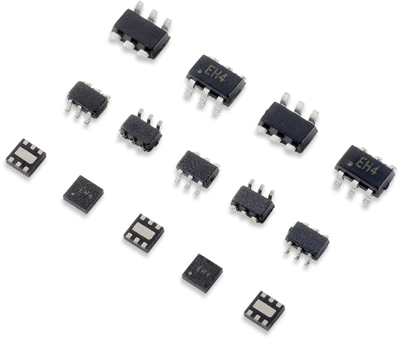

SMD TVS diode, bidirectional, 6 V, SC70-6L, Littelfuse SP3002-04JTG
Order No.: 74P4797
EAN: 4099891816629
MPN:
SP3002-04JTG
Unit Price (€ / pc.)
0.4522 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Diode array, SP3002-04JTG, Littelfuse
The SP3002-04JTG has ultra low capacitance rail-to rail diodes with an additional zener diode fabricated in a proprietary silicon avalanche technology to protect each I/O pin providing a high level of protection for electronic equipment that may experience destructive electrostatic discharges (ESD).
Features
- AEC-Q101 qualified
- RoHS compliant and lead-free
- Small packaging options saves board space
Applications
- Computer peripherals
- Mobile phones
- Digital cameras
- Network Hardware/Ports
- Test equipment
- Medical equipment
Technical specifications
| Ausführung | Bidirektional | |
| Durchbruchspannung | 7 V | |
| Gehäuse | SC70-6L | |
| Kapazität | 0.85 pF | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -40 °C | |
| Montage | SMD | |
| Sperrspannung | 6 V |
Download
Logistics
| Ursprungsland | TH |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
