SPHV12-01ETG-C | Littelfuse

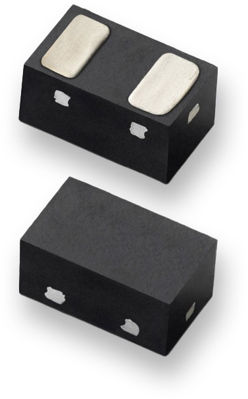

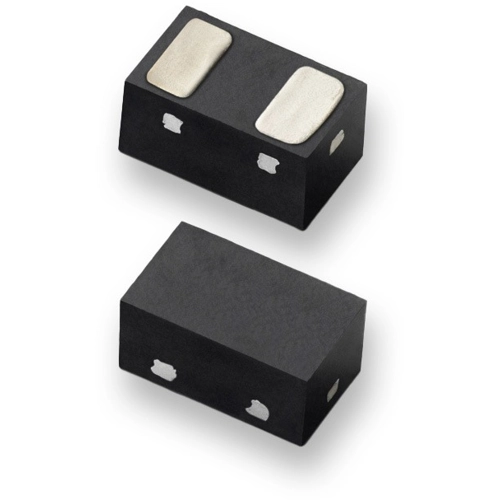

SMD TVS diode, bidirectional, 12 V, SOD882, Littelfuse SPHV12-01ETG-C
Unit Price (€ / pc.)
0.1285 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Discrete bidirectional TVS Diode, SPHV12-01ETG-C, Littelfuse
The SPHV12-01ETG-C discrete Bidirectional TVS Diode is designed for use in portable applications, LED lighting modules, automotive applications, and low speed I/Os. It will protect sensitive equipment from damage due to electrostatic discharge (ESD) and other overvoltage transients.
Features
- Halogen free, lead free and RoHS compliant
- Moisture sensitivity level(MSL -1)
- AEC-Q101 qualified
Applications
- LED Lighting modules
- Portable instrumentation
- General Purpose I/O
- Mobile and handhelds
Technical specifications
| Ausführung | Bidirektional | |
| Durchbruchspannung | 13.3 V | |
| Gehäuse | SOD882 | |
| Kapazität | 30 pF | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -40 °C | |
| Montage | SMD | |
| Sperrspannung | 12 V |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
