SRDA05-4BTG | Littelfuse

SMD TVS diode, Bidirectional, 5 V, SOIC-8L, Littelfuse SRDA05-4BTG

Order No.: 74P4828
EAN: 4099891816933
MPN:
SRDA05-4BTG
Series: SRDA05
Littelfuse
SRDA05-4BTG Littelfuse TVS Diodes

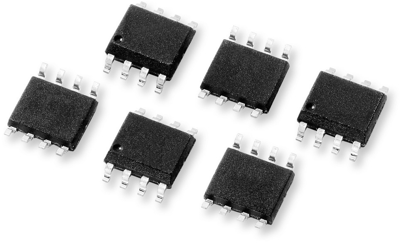

Image may differ
Unit Price (€ / pc.)
0.5593 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
0.56 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2500 pcs.
0.5593 €

Diode Array, SRDA05-4BTG, Littelfuse

The SRDA05-4BTG integrates low capacitance rail-to-rail diodes with an additional zener diode to protect I/O pins against ESD and lightning induced surge events. Its low loading capacitance makes it ideal for high-speed interface protection.

Features

  • Low clamp voltage
  • Low leakage current
  • SOIC-8 surface mount package (JEDEC MS-012)

Applications

  • Video line protection
  • Security cameras
  • Network equipment
  • Instrumentation, medical equipment
Technical specifications
Version Bidirectional
Breakdown voltage 6 V
Enclosure SOIC-8L
Capacity 8 pF
max. operating temperature 125 °C
min. operating temperature -40 °C
Assembly SMD
Rated blocking voltage 5 V
Logistics
Country of origin CN
Customs tariff number 85411000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
