SZ1SMC20AT3G | Littelfuse

SMD TVS diode, Unidirectional, 1.5 kW, 20 V, DO-214AB, Littelfuse SZ1SMC20AT3G

Order No.: 74P4970
EAN: 4099891818357
MPN:
SZ1SMC20AT3G
Series: SZ1SMC
Littelfuse
SZ1SMC20AT3G Littelfuse TVS Diodes

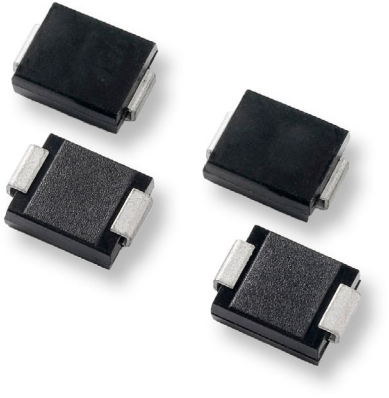

Image may differ
Print
Key Specification:
Pulse power loss 1.5 kW
Rated blocking voltage 20 V
Breakdown voltage 22.2 V
Continuous power loss 2 W
Show 14 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.4046 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Add to Cart
Total Price:
0.40 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2500 pcs.
0.4046 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

TVS Diode, SZ1SMC20AT3G, Littelfuse

The SZ1SMC20AT3G TVS Diode is designed to protect voltage sensitive components from high voltage, high energy transients. It has excellent clamping capability, high surge capability, low zener impedance and fast response time.
Technical specifications
Version Unidirectional
Continuous power loss 2 W
Breakdown voltage 22.2 V
Enclosure DO-214AB
Pulse power loss 1.5 kW
max. operating temperature 175 °C
min. operating temperature -65 °C
Assembly SMD
Rated blocking voltage 20 V
Show similar products 0
Logistics
Country of origin CN
Customs tariff number 85411000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
