SZSMF10AT1G | Littelfuse

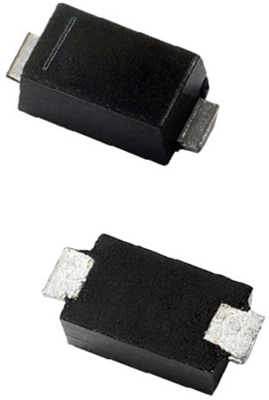

SMD TVS diode, Unidirectional, 200 W, 10 V, SOD-123FL, Littelfuse SZSMF10AT1G
Unit Price (€ / pc.)
0.1856 € *
Available: 0 pcs.
Leadtime: 17 Weeks **
TVS Diode, SZSMF10AT1G, Littelfuse
The SZSMF10AT1G is designed to protect sensitive systems or components from high voltage, high energy transients. It offers a fast response time, low Zener impedance, high surge and excellent clamping capabilities. Because of its small size, it is ideal for use in cellular phones, portable devices, business machines, power supplies and other industrial and consumer applications.
Features
- Zener Transient Overvoltage Suppressors
- Low Leakage
- Pb−Free and are RoHS Compliant
Technical specifications
| Version | Unidirectional | |
| Continuous power loss | 1 W | |
| Breakdown voltage | 11.1 V | |
| Enclosure | SOD-123FL | |
| Pulse power loss | 200 W | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Rated blocking voltage | 10 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
