TPSMB9.0A-VR | Littelfuse

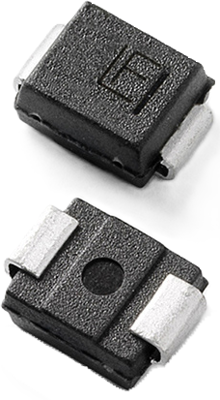

SMD TVS diode, unidirectional, 600 W, 9 V, DO-214AB, Littelfuse TPSMB9.0A-VR
Unit Price (€ / pc.)
0.2832 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
TVS Diode, TPSMB9.0A-VR, Littelfuse
TPSMB9.0A-VR is a Uni-directional Transient Voltage Suppression (TVS) Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Features
- High reliability application and automotive grade AEC Q101 qualified
- Excellent clamping capability
- Low incremental surge resistance
- Matte tin lead–free plated
- Halogen free and RoHS compliant
Applications
- Electronic control units
- BCMs, CAN bus, LIN bus
- Sensors, Entertainment systems
- Portable devices that require high reliability
Technical specifications
| Ausführung | Unidirektional | |
| Dauerverlustleistung | 5 W | |
| Durchbruchspannung | 10 V | |
| Gehäuse | DO-214AB | |
| Impuls-Verlustleistung | 600 W | |
| max. Temperatur | 175 °C | |
| min. Temperatur | -65 °C | |
| Montage | SMD | |
| Sperrspannung | 9 V |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
