TPSMC160A | Littelfuse

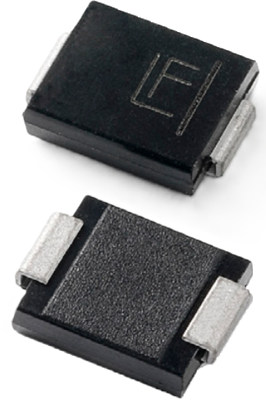

SMD TVS diode, Unidirectional, 1.5 kW, 136.8 V, DO-214AB, Littelfuse TPSMC160A
Unit Price (€ / pc.)
0.6069 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
TVS Diode, TPSMC160A, Littelfuse
TPSMC160A is a Uni-directional Transient Voltage Suppression (TVS) Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Features
- High reliability application and automotive grade AEC Q101 qualified
- Excellent clamping capability
- Low incremental surge resistance
- Matte tin lead–free plated
- Halogen free and RoHS compliant
Applications
- Protection of I/O interfaces
- VCC bus
- Telecom
- Computer
- Industrial and consumer electronic applications
Technical specifications
| Version | Unidirectional | |
| Continuous power loss | 6.5 W | |
| Breakdown voltage | 152 V | |
| Enclosure | DO-214AB | |
| Pulse power loss | 1.5 kW | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -65 °C | |
| Assembly | SMD | |
| Rated blocking voltage | 136.8 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
