TMOV25SP130M | Littelfuse
Varistor, radial, VV 205 V, 20000 A, 170 V (DC), 130 V (AC), 190 J, TMOV25SP130M
Unit Price (€ / pc.)
3.1892 € *
Available: 0 pcs.
Leadtime: 13 Weeks **

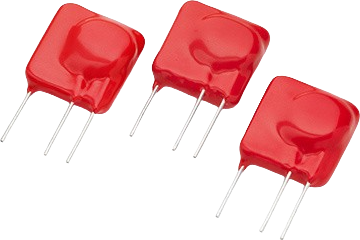

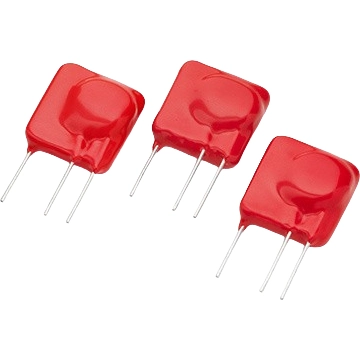

Varistor, TMOV25SP130M, Littelfuse
The TMOV25SP130M is rated for specific AC line operating voltages, and exceeding these limits through the application of a sustained abnormal over-voltage condition could result in overheating and damage to the MOV. This product was designed to address this condition in a single integrated package. It incorporates a patented integrated thermally responsive element within the body of the device which will open-circuit the varistor in case of overheating due to abnormal over-voltage events.
Features
- RoHS Compliant and Lead-free
- Low Leakage
Applications
- SPD Products
- AC Panel Protection Modules, AC Line Power Supplies, AC Power Meters
- Surge Protected Strip Connectors
- Inverters
- AC/DC Power Supplies
Technical specifications
| Bauform | radial | |
| Energieabsorption | 190 J | |
| max. Stoßstrom (8/20 µs) | 20000 A | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (AC) | 130 V | |
| Nennspannung (DC) | 170 V | |
| Varistor Spannung Typ | 205 V |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85334090 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
