V07X420E | Littelfuse
Varistor, radial, VV 680 V, 2500 A, 560 V (DC), 420 V (AC), 65 J, V07X420E
Unit Price (€ / pc.)
0.1690 € *
Available: 0 pcs.
Leadtime: 15 Weeks **

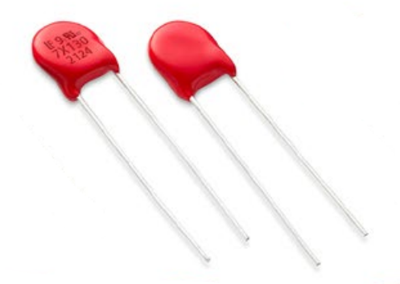

Varistor, V07X420E, Littelfuse
The V07X420E is an Epoxy Coated, Radial Leaded Varistor specially designed for applications requiring high surge energy/current absorption and multiple surge pulse withstanding capability.
Features
- High operating temperature
- RoHS compliant, Halogen-free, and Pb-free
- Environment-friendly
Applications
- Home appliance
- Outdoor LED lighting driver/power supply
- Switch Mode Power Supply
- Ground Fault Circuit Interrupter
- Smart E-Meter
- Home automation and security system: fire alarm, smoke detector
Technical specifications
| Design | radial | |
| Energy absorption | 65 J | |
| max. Surge current, transient (8/20 µs) | 2500 A | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (AC) | 420 V | |
| Rated voltage (DC) | 560 V | |
| Grid | 5 mm | |
| Varistor Voltage Type | 680 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85334090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
