V20X510E | Littelfuse

Varistor, radial, VV 820 V, 15000 A, 670 V (DC), 510 V (AC), 650 J, V20X510E

Order No.: 74P7082
EAN: 4099891839475
MPN:
V20X510E
Series: Xtreme
V20X510E Littelfuse Varistors

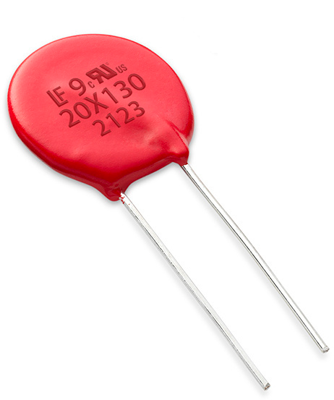

Image may differ
Unit Price (€ / pc.)
0.5593 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
503.37 € *
*incl. VAT plus shipping costs
**Subject to prior sale
900 pcs.
0.5593 €

Varistor, V20X510E, Littelfuse

The V20X510E is an Epoxy Coated, Radial Leaded Varistor specially designed for applications requiring high surge energy/current absorption and multiple surge pulse withstanding capability.

Features

  • High operating temperature
  • RoHS compliant, Halogen-free, and Pb-free
  • Environment-friendly

Applications

  • Home appliance
  • Outdoor LED lighting driver/power supply
  • Switch Mode Power Supply
  • Ground Fault Circuit Interrupter
  • Smart E-Meter
  • Home automation and security system: fire alarm, smoke detector
Technical specifications
Bauform radial
Energieabsorption 650 J
max. Stoßstrom (8/20 µs) 15000 A
max. Temperatur 125 °C
min. Temperatur -40 °C
Nennspannung (AC) 510 V
Nennspannung (DC) 670 V
Rastermaß 10 mm
Varistor Spannung Typ 820 V
Logistics
Ursprungsland CN
Zolltarifnummer 85334090
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
