V385LA40CP | Littelfuse

Varistor, radial, VV 620 V, 10000 A, 385 V (AC), 370 J, V385LA40CP

Order No.: 74P7530
EAN: 4099891843953
MPN:
V385LA40CP
Series: C III
V385LA40CP Littelfuse Varistors

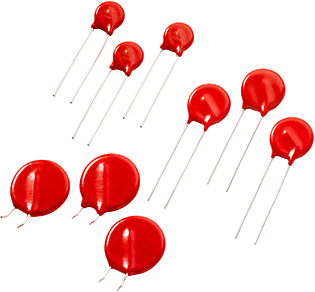

Image may differ
Unit Price (€ / pc.)
0.5831 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
699.72 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1200 pcs.
0.5831 €

Varistor, V385LA40CP, Littelfuse

The V385LA40CP is a metal-oxide varistor (MOV) specifically designed for high surge energy absorption ratings. This is achieved through a special dielectric material formulation which also results in higher repetitive surge ratings than other MOV types. It is primarily intended for use in AC line Transient Voltage Surge Suppressor (TVSS) product environment and other similar applications requiring high transient energy and peak current capability in a relatively small package size.

Features

  • Lead-free
  • Halogen-Free
  • RoHS compliant
Technical specifications
Bauform radial
Energieabsorption 370 J
max. Stoßstrom (8/20 µs) 10000 A
max. Temperatur 85 °C
min. Temperatur -55 °C
Nennspannung (AC) 385 V
Rastermaß 8.5 mm
Varistor Spannung Typ 620 V
Logistics
Ursprungsland CN
Zolltarifnummer 85334090
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
