V510LA10CP | Littelfuse

Varistor, radial, VV 820 V, 3500 A, 510 V (AC), 98 J, V510LA10CP

Order No.: 74P7749
EAN: 4099891846145
MPN:
V510LA10CP
Series: C III
V510LA10CP Littelfuse Varistors
Image may differ
Unit Price (€ / pc.)
0.5117 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
1,074.57 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2100 pcs.
0.5117 €

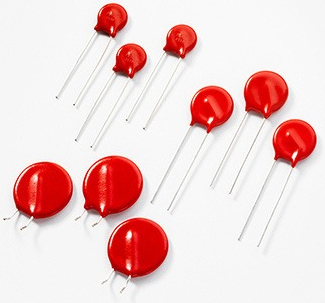

Radial lead varistor, V510LA10CP, Littelfuse

This product is specifically designed for applications requiring high surge energy absorption ratings and superior multiple pulse absorption rating. This is achieved through a special dielectric material formulation which also results in higher repetitive surge ratings than other MOV types. It is intended for use in AC line Surge Protection Device (SPD) product and other similar applications requiring high transient energy and peak current capability in a relatively small package size.

Features

  • Lead–free, halogen-free and RoHS compliant
  • High pulse life rating
  • High peak pulse current capability
  • No derating up to 85ºC ambient
Technical specifications
Bauform radial
Energieabsorption 98 J
max. Stoßstrom (8/20 µs) 3500 A
max. Temperatur 85 °C
min. Temperatur -55 °C
Nennspannung (AC) 510 V
Rastermaß 8.5 mm
Varistor Spannung Typ 820 V
Logistics
Ursprungsland CN
Zolltarifnummer 85334090
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
